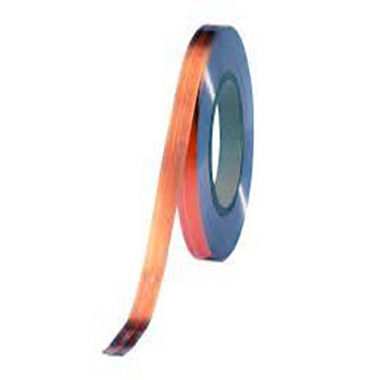

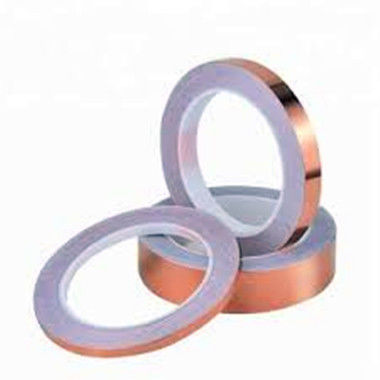

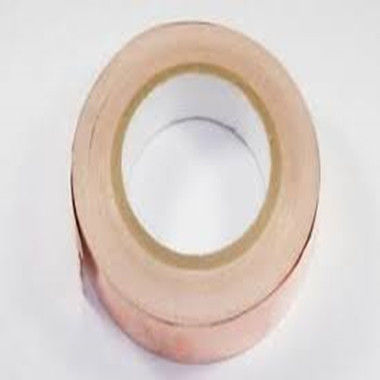

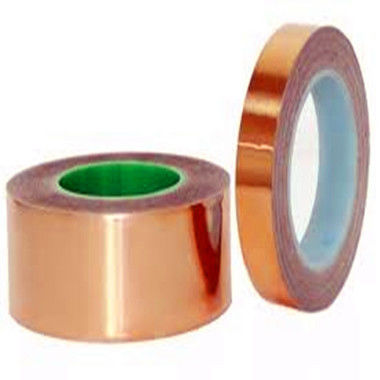

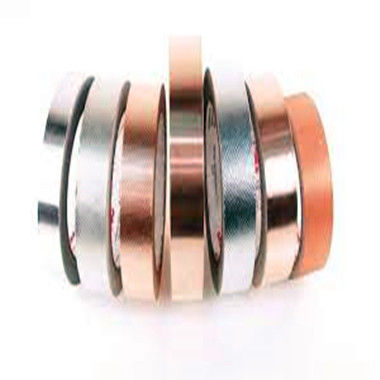

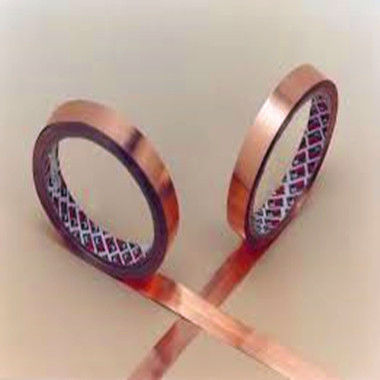

Product description for conductive shield copper tape for MRI room
|
Product name |
copper tape |
|
Material |
99.9% copper |
|
Backing |
copper foil |
|
Adhesive |
acrylic adhesive |
Standard size for conductive shield copper tape for MRI room
Thickness: 0.06mm, 0.08mm, 0.1mm
Width: 25mm, 50mm
Application for conductive shield copper tape for MRI room
- RF room, MRI room, EMC chamber
- Stained glass
- Guitar
- Device EMI shielding
- Electrical repairs
- Paper circuits
- Protect plants from slugs and snails
|
Conductive adhesive tape Product Features |
|
|
Single Sided Copper foil tape |
|
|
Shield against EMI/RFI radiation |
|
|
The tape is conductive throughout, including the adhesive, and offers mechanical, electrical, and thermal values to meet shielding requirements |
|
|
3/8" width is ideal for securing cable shields to backshell gromments |
|
|
Deafsoft copper foil backing |
|
|
Conductive acrylic adhesive |
|
|
Supplied on a removable liner easy handling and die cutting |
|
|
Conductive adhesive tape Technical Specifications |
|
|
Thickness(mm) |
Standard 0.06mm/0.08mm/0.1mm |
|
Materials |
99.9% Copper |
|
Color |
Copper |
|
Short-term temperature |
180 |
|
Long-term temperature |
120 |
|
Main Features |
EMI/RFI shielding |
|
Conductive adhesive tape Application Scope |
|
|
all types of transformers |
|
|
mobile phones, computers, PDA, PDP, LCD monitors |
|
|
copiers and other electronic products where electromagnetic shielding is demanded |
|
|
notebook computers |
|
· Material: 99% copper
· Backing: copper foil
· Thickness: 0.06mm, 0.08mm, 0.1mm, customized acceptable
· Width: 12.7mm, 18mm, 25mm, 50mm, customized acceptable
· Length: 3m, 11m, 33m, 50m, customized acceptable
· Adhesive: acrylic adhesive
Application for EMI shielding conductive copper foil with adhesive tape
· RF room, MRI room, EMC chamber
· Stained glass
· Guitar
· Protect plants from slugs and snails
· Device EMI shielding
· Electrical repairs
· Paper circuits
