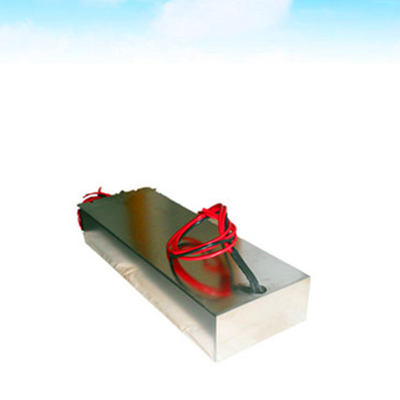

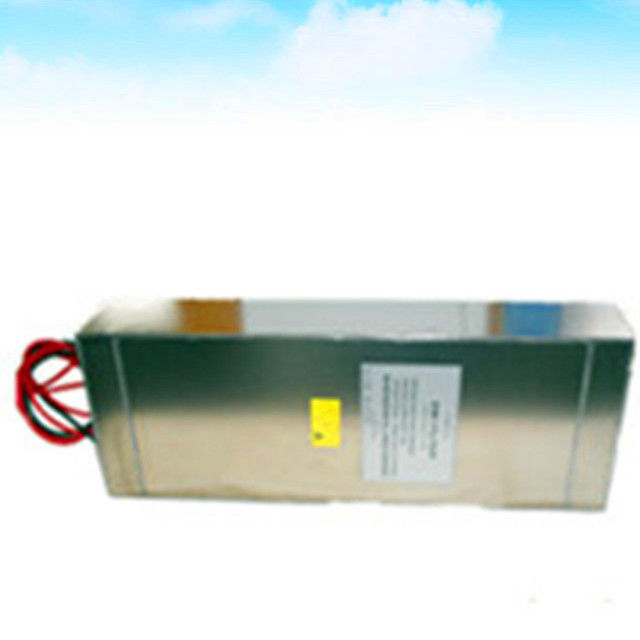

50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure

Products - EMI Power Line Filter

High Light

380VAC emi power line filter
,
50ohm emi power line filter
,
50ohm shielded enclosure emi filter
Type

EMI Filter
Transfer Function

Low Pass
Nominal Center Frequency

50/60Hz
3dB Bandwidth

14K
Insertion Loss

100dB
Input Impedance

50ohm
Stopband Attenuation

100dB
Rated Voltage

380VAC
Rated Current

100A
Operating Frequency

50/60Hz
Application

Rf Shielding Room
Port

Shanghai
Place of Origin

China
Brand Name

nenglv
Certification

ce
Model Number

HZ-4X100C5
Price

$500.00/pieces >=1 pieces
Packaging Details

1 pcs in one carton <br>the gross weight is about 30Kg
Supply Ability

100 Piece/Pieces per Week

50ohm 380VAC 150-200A Emi Power Line Filter for shielded enclosure

button button

Get Price Contact Now

Product Description

RATED VOLTAGE	380 VAC
RATED CURRENT	100 A
Voltage Drop	Less than 1V
Overload	140% of rated current for 15 minutes

Harmonic Distortion	Less than 2% @ full rated current
Leakage Current	≤0.2A@380/230VAC and 50Hz
Dielectric Withstanding Voltage	1000VDC (line to line) 1000VDC (line to case)
DC Insulation Resistance	As Per MIL-STD-202 Method 202

Terminal Strength	As Per MIL-STD-202 Method 211
Temperature Rise	As Per MIL-F-15733

Insertion Loss	≥100dB@14K-40GHz As Per MIL-STD-220A, Under Load Condition
Climatic Classification	25/070/21

DIMENSION
