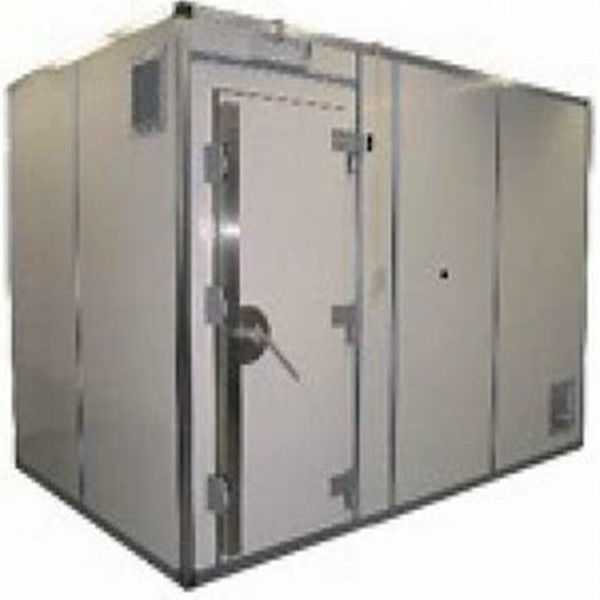

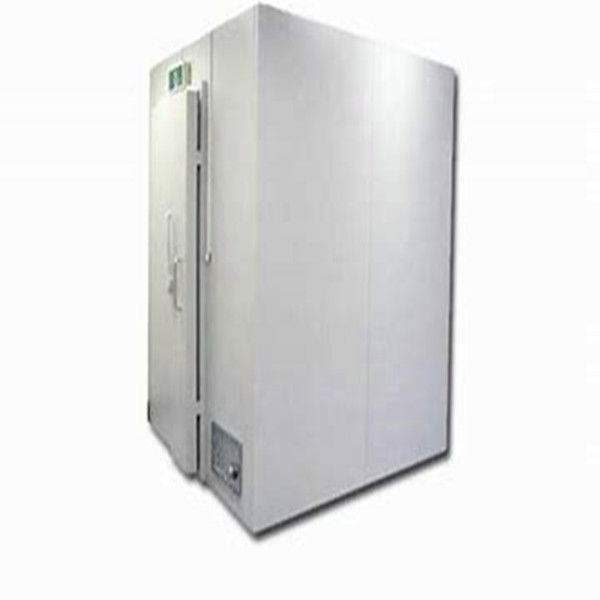

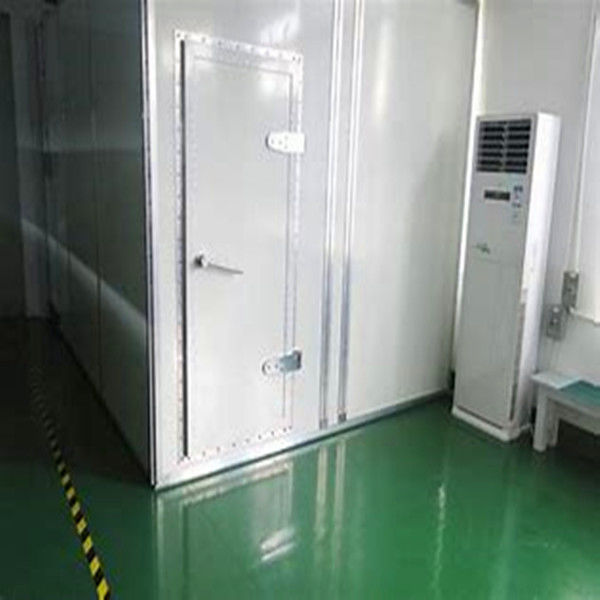

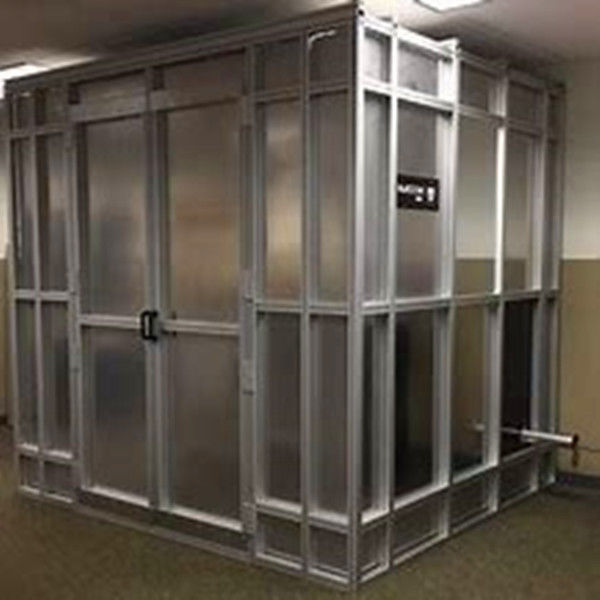

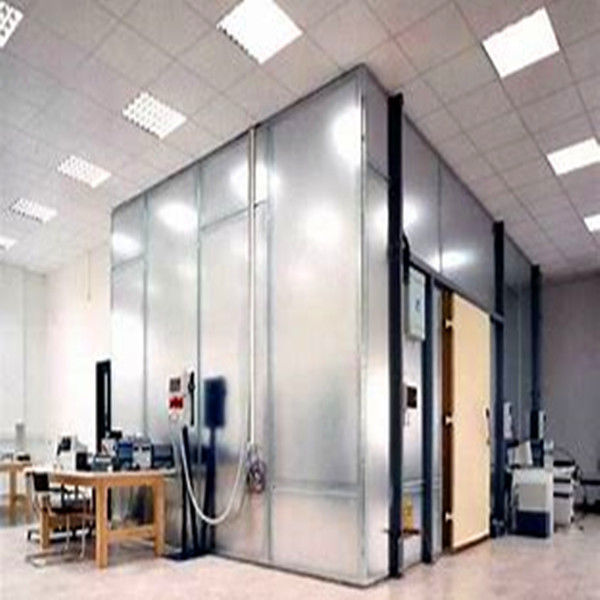

up to 100dB Rf Enclosure Emi Shield Emc Tester RF Shielding Room 14KHz-40GHz

MOQ: >=1 Sets
Price: $10,000.00
Standard Packaging: wooden case
Supply Capacity: 1 Set/Sets per Month
Detail Information
Product Description
Detail Information
Brand Name
haozhuo
Model Number
H
Type:
RC Filter
Transfer Function:
Low Pass
Package Type:
Surface Mount
Nominal Center Frequency:
50Hz
3dB Bandwidth:
10M
Insertion Loss:
100dB
Input Impedance:
50oHm
Stopband Attenuation:
100dB
Power Supply:
Single Phase Three Phase Or Dc
Usage:
Emc Test
Room Size:
Customized
Door Size:
Customized
Panel:
2mm/3mm Steel Panel
Attenuation:
14KHz-40GHz >=100dB
Packing:
Wooden Case
Delivery Time:
2-3weeks For Emc Testing Electromagnetic Shielding RF Room
Port:
Shanghai
Highlight:

100dB Rf Enclosure Emc Tester

,

Emi Shield Emc Tester

,

RF Shielding Room 14KHz

Product Description

14KHz-40GHz more than 100dB rf enclosure emi shield emc tester​

  • 2mm or 3mm thick Galvanized steel
  • Modular design allows for easy assembly and disassembly at a later date
  • Can easily be modified into larger or smaller rooms
  • Used by industry to perform radiated emissions and;
  • Radiated immunity testing of electrical/electronic equipment to various International specifications



When a shielded room is necessary?

· If your lab is near a broad spectrum emitter (i.e equipment that transmits multiple frequencies under 400Hz), radio tower, mobile phone transmitter or other large field generators, then you should consider a shielded room.

· If your research is in the gamma band and you do not want to use a 60/50Hz notch filter to remove mains power noise, you might consider a shielded room. We recommend taking the steps above to first minimize the mains power noise. If that is not sufficient for your needs, then a shielded room may help.



Product Features
Shielding panels are made of molded cold-rolled steel plates. They are jointed in way and welded with CO2 protection, which can restrain the plates from distortion and ensure the leveling of the steel plates.
Self-supported frame construction is made of section materials.
Shielding door is optional: standard electromotive door (electromotive / manual alternative), full-automatic shielding door (light-activated with password) sliding door. Subshining stainless steel decoration is on surface of the door. Standard dimension of the door is:0.85×2(m).
Large-scale hanging sliding shielding-door, electromotive sliding push-in door, electromotive sliding gasbag door, rotated door with track.
Ventilated window is designed in cellular wave-guide type with dimension:300×300(mm).
Power filter is in condition of high-performance and low-leakage.
Telephone, air-conditioning, fire-fight devices, optical fiber and CAT5 cables can be equipped customized.
Decoration will be arranged in the shielding room according to standard equipment room requirements.
Shielding Properties (dB)



Magnetic field

 14kHz 85dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB



Microware

 1-10GHz 110dB
10-20GHz 100dB
20-40GHz 80dB
Application Scope
EMC tesing
Items 1 Module Panel type, 2mm/3mm galvanized steel plate
Items 2 RF Shielding Door, Open size:1000*2000mm
Or Customized dimension
Items 3 Power Filters
16A/ 32A/50A/63A
Or Customized parameter
Items 4 Honeycomb Ventilation panels
300x300x25mm
300x600x25mm
Or Customized dimension
Items 5 RF Panel
300*200mm,including waveguide Ø4cm / L220cm x1 BNC*2/N*2/SMA*2
Or Customized dimension
Items 6 Floor
Anti-static floor or Laminate flooring
Or customized materials
Items 7 Foam RF absorber
Ferrite tile
High power absorber
Items 8 Beryllium copper Fingers
Items 9 Steel waveguide
Items 10 EMI Shielding Gasket





RF Anechoic chamber Shielding Properties (dB)



Magnetic field

 14kHz 75dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB



Microware

 1-10GHz 110dB
10-20GHz

100dB



up to 100dB Rf Enclosure Emi Shield Emc Tester RF Shielding Room 14KHz-40GHzup to 100dB Rf Enclosure Emi Shield Emc Tester RF Shielding Room 14KHz-40GHz
