0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage

0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage

Products - RF Shielding Copper Foil
  • High Light

    RF EMI Shielding Copper Foil

    ,

    Pcb Rf Shield

    ,

    Pcb Emi Shield

  • Type
    LC Filter
  • Transfer Function
    Low Pass
  • Package Type
    Surface Mount
  • Nominal Center Frequency
    50hZ
  • 3dB Bandwidth
    10m
  • Insertion Loss
    100dB
  • Input Impedance
    50
  • Stopband Attenuation
    100dB
  • Application
    MRI ROOM, MRI Room
  • Thickness
    0.105mm,0.14mm, 0.105mm/0.14mm, 3oz/4oz
  • Width
    1350mm, 1350mm
  • Material
    Copper, Copper
  • Grade
    Pure Copper
  • Cu (Min)
    99.8%
  • Alloy Or Not
    Non-alloy
  • Delivery Time
    5-7 Days
  • MOQ
    100-500KGS
  • Packing
    Wooden Carton Packing
  • Port
    Shanghai
  • Place of Origin
    Jiangsu, China
  • Brand Name
    HZ
  • Certification
    CE RoHS
  • Model Number
    COPPER FOIL
  • Minimum Order Quantity
    >=1 Kilograms
  • Price
    $19.00
  • Packaging Details
    wooden case
  • Supply Ability
    1000 Kilogram/Kilograms per Week

0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage

  • 0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage
  • 0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage
  • 0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage
  • 0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage
  • 0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage
  • 0.105mm 3oz Pcb EMI RF Shielding Copper Foil For MRI Chamber Faraday Cage
Get Price Contact Now

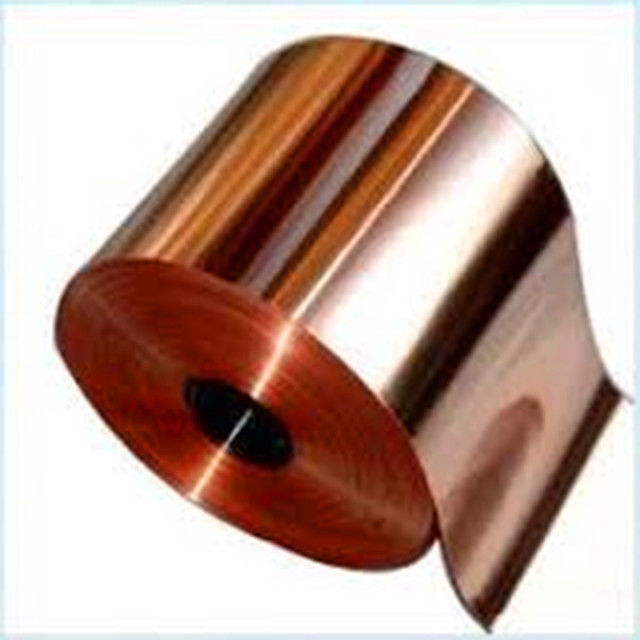

Rf Shielding Copper Foil For MRI Chamber

  • Metallic foil or plaited braid to shield equipment wires. Coaxial cable has this EMC shield built into the wire construction, underneath an outer insulation layer. Other wire bundles can be wrapped in foil, or ready-made cable braid applied over the whole construction. The connectors on the ends of the wire would also require metal covers, and the braiding or foil needs to be attached to the metal to give total coverage.
  • For shielding on PCBs (known as Board Level Shielding or BLS), shielding typically consists of a PCB with a ground plane built into it, and a metal box (known as a shield can) placed over the sensitive or transmitting elements. The components are then completely surrounded by a Faraday cage arrangement.
  • In devices such as audio speakers, an inner metallic casing would be used to successfully block EMI produced by nearby transmitting devices (such as microwaves and TVs).



Product description
Name copper foil
Material 99.8% copper
Width standard 1350mm
Thickness standard 0.105mm(3oz),0.14mm(4oz)
Feature EMI shielding
Application faraday cage,MRI room



Product description:

1. The product structure is based on copper foil as the substrate, conductive acrylic adhesive as the adhesive, plus release paper.

2. Three-tier architecture is very suitable for cutter mold or the metal mold die-cutting, Can be flat cutter or round cutter to die-cutting.

3. The width of the product available from 3mm ~ 380mm. Standard length is 50m., also do 100m, 150m or longer, save customers the trouble of frequently reloading.



Part Number Backing Material Thickness of Backing (mm) Total Thickness (mm) Holding Power Min/inch Adhesion Strength kg/25mm Adhesive Component Shield Efficacy 10MHz~ 1GHz (dB) Conductivity z-ohms Integrated thermal conductivity (W/mK)
XPH0M123 Copper Foil 0.012 0.030±0.01 ≥1440 >0.8 Acrylic ≥60 <0.03 60
XPH0M183 Copper Foil 0.018 0.050±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 60
XPH0M253 Copper Foil 0.025 0.06±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 80
XPH0M353 Copper Foil 0.035 0.070±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 90
XPH0M503 Copper Foil 0.050 0.085±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 110
XPH0M753 Copper Foil 0.075 0.11±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 130
XPH0MA03 Copper Foil 0.100 0.135±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 160
XPH0MA23 Copper Foil 0.125 0.15±0.015 ≥1440 >1.0 Acrylic ≥60 <0.03 170
XPH0MA53 Copper Foil 0.150 0.20±0.02 ≥1440 >1.0 Acrylic ≥60 <0.03

190







Product Features
shielding ED copper foil
thickness 0.009--3mm, width 10-1380mm
easier to make a faraday cage, EMI room
generally 400-500kg/roll
Physical Properties
Density:8.9g/cm³
Electrical conductivity(20°C):min 90%IACS for annealed to temper 80%IACS for rolled to temper min
Thermal conductivity(20°C):390W/(m°C)
Elastic modulus:118000N/m
Softening temperature:≥380°C
Certification
meet the technical conditions GB/T 5187-2008 standards.

in accordance with ISO9001-2000 Quality system requirements
