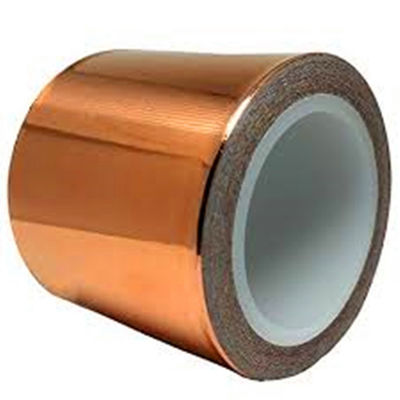

Mri EMI RF Shielding Copper Foil 1350mm 1oz 3oz 4oz up to 7oz
  • name
  • name
  • name
  • name
  • name
  • name

Mri EMI RF Shielding Copper Foil 1350mm 1oz 3oz 4oz up to 7oz

MOQ: >=1 Kilograms
Price: $19.00
Standard Packaging: wooden case
Supply Capacity: 1000 Kilogram/Kilograms per Week
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
HZ
Certification
CE RoHS
Model Number
COPPER FOIL
Type:
LC Filter
Transfer Function:
Low Pass
Package Type:
Surface Mount
Nominal Center Frequency:
50hZ
3dB Bandwidth:
10m
Insertion Loss:
100dB
Input Impedance:
50
Stopband Attenuation:
100dB
Application:
MRI ROOM, MRI Room
Thickness:
0.105mm,0.14mm, 0.105mm/0.14mm, 3oz/4oz
Width:
1350mm, 1350mm
Material:
Copper, Copper
Grade:
Pure Copper
Cu (Min):
99.8%
Alloy Or Not:
Non-alloy
Delivery Time:
5-7 Days
MOQ:
100-500KGS
Packing:
Wooden Carton Packing
Port:
Shanghai
Highlight:

Mri RF EMI Shielding

,

RF EMI Shielding Copper Foil

,

5oz Shielding Copper Foil

Product Description

Mri Room Copper Foil For Shielding Emi 3oz 5oz





Product description:

1. The product structure is based on copper foil as the substrate, conductive acrylic adhesive as the adhesive, plus release paper.

2. Three-tier architecture is very suitable for cutter mold or the metal mold die-cutting, Can be flat cutter or round cutter to die-cutting.

3. The width of the product available from 3mm ~ 380mm. Standard length is 50m., also do 100m, 150m or longer, save customers the trouble of frequently reloading.



Product description
Name copper foil
Material 99.8% copper
Width standard 1350mm
Thickness standard 0.105mm(3oz),0.14mm(4oz)
Feature EMI shielding
Application faraday cage,MRI room





Part Number Backing Material Thickness of Backing (mm) Total Thickness (mm) Holding Power Min/inch Adhesion Strength kg/25mm Adhesive Component Shield Efficacy 10MHz~ 1GHz (dB) Conductivity z-ohms Integrated thermal conductivity (W/mK)
XPH0M123 Copper Foil 0.012 0.030±0.01 ≥1440 >0.8 Acrylic ≥60 <0.03 60
XPH0M183 Copper Foil 0.018 0.050±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 60
XPH0M253 Copper Foil 0.025 0.06±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 80
XPH0M353 Copper Foil 0.035 0.070±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 90
XPH0M503 Copper Foil 0.050 0.085±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 110
XPH0M753 Copper Foil 0.075 0.11±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 130
XPH0MA03 Copper Foil 0.100 0.135±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 160
XPH0MA23 Copper Foil 0.125 0.15±0.015 ≥1440 >1.0 Acrylic ≥60 <0.03 170
XPH0MA53 Copper Foil 0.150 0.20±0.02 ≥1440 >1.0 Acrylic ≥60 <0.03

190







Product Features
shielding ED copper foil
thickness 0.009--3mm, width 10-1380mm
easier to make a faraday cage, EMI room
generally 400-500kg/roll
Physical Properties
Density:8.9g/cm³
Electrical conductivity(20°C):min 90%IACS for annealed to temper 80%IACS for rolled to temper min
Thermal conductivity(20°C):390W/(m°C)
Elastic modulus:118000N/m
Softening temperature:≥380°C
Certification
meet the technical conditions GB/T 5187-2008 standards.

in accordance with ISO9001-2000 Quality system requirements



Mri EMI RF Shielding Copper Foil 1350mm 1oz 3oz 4oz up to 7ozMri EMI RF Shielding Copper Foil 1350mm 1oz 3oz 4oz up to 7oz
