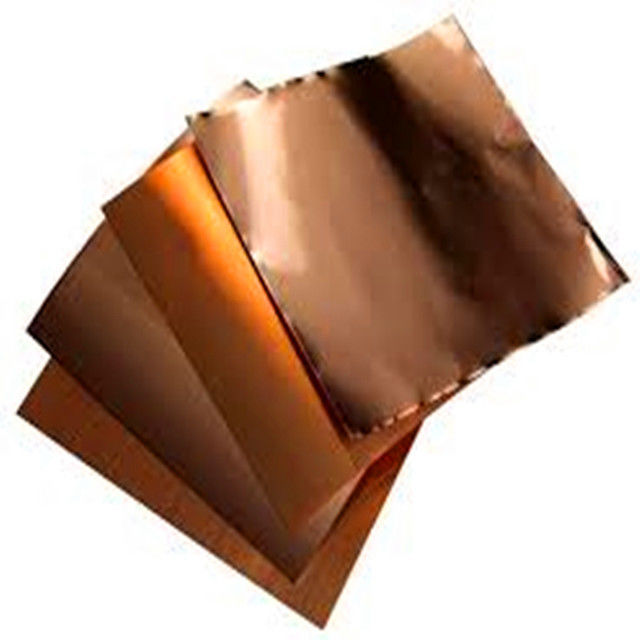

Mri Room Shielding Emi Copper Foil Pcb Emi Shield 99.8 Cu 3oz 4oz 0.14mm 0.105mm
  • name
  • name
  • name
  • name
  • name
  • name

Mri Room Shielding Emi Copper Foil Pcb Emi Shield 99.8 Cu 3oz 4oz 0.14mm 0.105mm

MOQ: >=1 Kilograms
Price: $19.00
Standard Packaging: wooden case
Supply Capacity: 1000 Kilogram/Kilograms per Week
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
HZ
Certification
CE RoHS
Model Number
COPPER FOIL
Type:
LC Filter
Transfer Function:
Low Pass
Package Type:
Surface Mount
Nominal Center Frequency:
50hZ
3dB Bandwidth:
10m
Insertion Loss:
100dB
Input Impedance:
50
Stopband Attenuation:
100dB
Application:
MRI ROOM, MRI Room
Thickness:
0.105mm,0.14mm, 0.105mm/0.14mm, 3oz/4oz
Width:
1350mm, 1350mm
Material:
Copper, Copper
Grade:
Pure Copper
Cu (Min):
99.8%
Alloy Or Not:
Non-alloy
Delivery Time:
5-7 Days
MOQ:
100-500KGS
Packing:
Wooden Carton Packing
Port:
Shanghai
Highlight:

emi shielding copper foils

,

emc copper foil

,

emc copper foil

Product Description

Mri Room Copper Foil For Shielding Emi 1350mm Width



Electromagnetic Compatibility (EMC) shielding is any method used to protect a sensitive signal from external electromagnetic signals, or preventing a stronger signal from leaking out and interfering with surrounding electronics. It can cover PCB elements such as IC chips and active components, or connectors and cables between PCBs.



Electromagnetic frequencies can affect many sensitive electronics, and can cause a wide variety of different issues from a simple hiss on a communication line, to a total disruption of a safety-critical signal. As such it affects a diverse range of sectors, including all consumer and industrial electronics, and into critical systems for military and emergency services.





Product description
Name copper foil
Material 99.8% copper
Width standard 1350mm
Thickness standard 0.105mm(3oz),0.14mm(4oz)
Feature EMI shielding
Application faraday cage,MRI room



Product description:

1. The product structure is based on copper foil as the substrate, conductive acrylic adhesive as the adhesive, plus release paper.

2. Three-tier architecture is very suitable for cutter mold or the metal mold die-cutting, Can be flat cutter or round cutter to die-cutting.

3. The width of the product available from 3mm ~ 380mm. Standard length is 50m., also do 100m, 150m or longer, save customers the trouble of frequently reloading.



Part Number Backing Material Thickness of Backing (mm) Total Thickness (mm) Holding Power Min/inch Adhesion Strength kg/25mm Adhesive Component Shield Efficacy 10MHz~ 1GHz (dB) Conductivity z-ohms Integrated thermal conductivity (W/mK)
XPH0M123 Copper Foil 0.012 0.030±0.01 ≥1440 >0.8 Acrylic ≥60 <0.03 60
XPH0M183 Copper Foil 0.018 0.050±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 60
XPH0M253 Copper Foil 0.025 0.06±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 80
XPH0M353 Copper Foil 0.035 0.070±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 90
XPH0M503 Copper Foil 0.050 0.085±0.005 ≥1440 >1.0 Acrylic ≥60 <0.03 110
XPH0M753 Copper Foil 0.075 0.11±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 130
XPH0MA03 Copper Foil 0.100 0.135±0.01 ≥1440 >1.0 Acrylic ≥60 <0.03 160
XPH0MA23 Copper Foil 0.125 0.15±0.015 ≥1440 >1.0 Acrylic ≥60 <0.03 170
XPH0MA53 Copper Foil 0.150 0.20±0.02 ≥1440 >1.0 Acrylic ≥60 <0.03

190







Product Features
shielding ED copper foil
thickness 0.009--3mm, width 10-1380mm
easier to make a faraday cage, EMI room
generally 400-500kg/roll
Physical Properties
Density:8.9g/cm³
Electrical conductivity(20°C):min 90%IACS for annealed to temper 80%IACS for rolled to temper min
Thermal conductivity(20°C):390W/(m°C)
Elastic modulus:118000N/m
Softening temperature:≥380°C
Certification
meet the technical conditions GB/T 5187-2008 standards.

in accordance with ISO9001-2000 Quality system requirements



Mri Room Shielding Emi Copper Foil Pcb Emi Shield 99.8 Cu 3oz 4oz 0.14mm 0.105mmMri Room Shielding Emi Copper Foil Pcb Emi Shield 99.8 Cu 3oz 4oz 0.14mm 0.105mm





Tags:

EMI Shielding Copper Wool,

RF EMI Shielding Copper Foil,

Mri EMI Shielding Foil
